For Custom Applications To Upgrade Your Existing Taillights
***Bolts To Stock Locations, No Modification Fit.***
Available ONLY From Rodtiques
Fits: 1947-1953 Chevy Trucks.

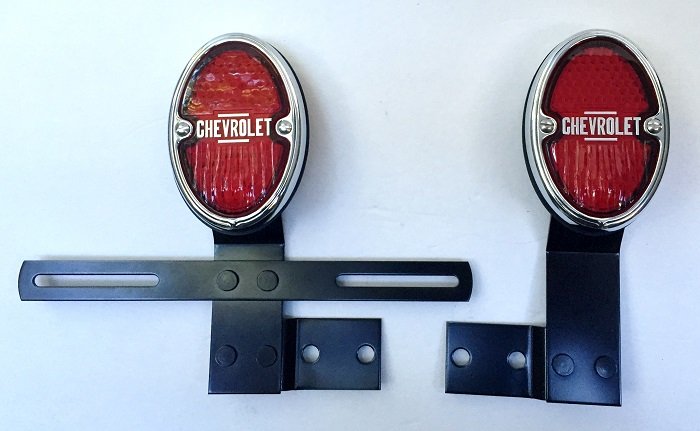

* 12 Volt LED Lights With Chevrolet Script As Shown In Pictures.

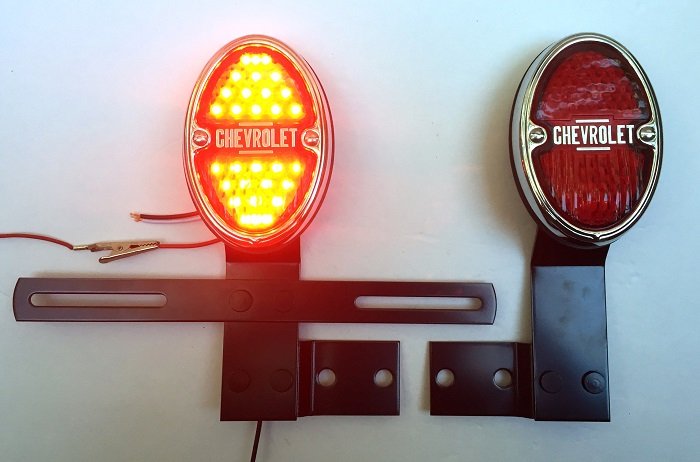

* Entire Lens Lights Up For All Functions - Stop, Tail & Turn.
* Epoxy Coated, Fully Sealed Electronics.
* Solid State Circuit Boards.

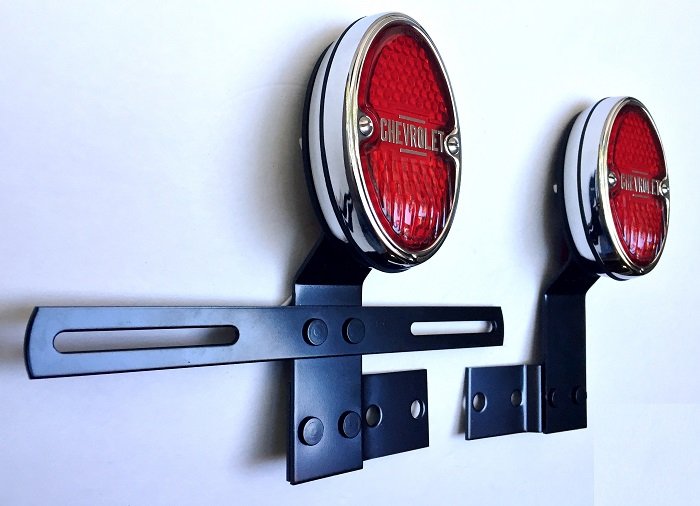

* Chrome Bezels With Stainless Screws & Nuts.
* Black Painted Taillight Brackets.
* Comes With Left Side License Plate Bracket.
* All Lights Are Tested And Assembled In Rodtiques Shop.
ATTENTION:
*** THESE LIGHT DO NOT HAVE A LICENSE PLATE LIGHT. ***
OPTIONAL LED PLATE LIGHT AVAILABLE
(See example picture below.)
Dimensions
Light Housing Is 4-1/2" Tall & 3" Wide.
Light Housing Depth 1-1/8".
When Installed The Center Of This Light Will Be The Same As The Factory Light.

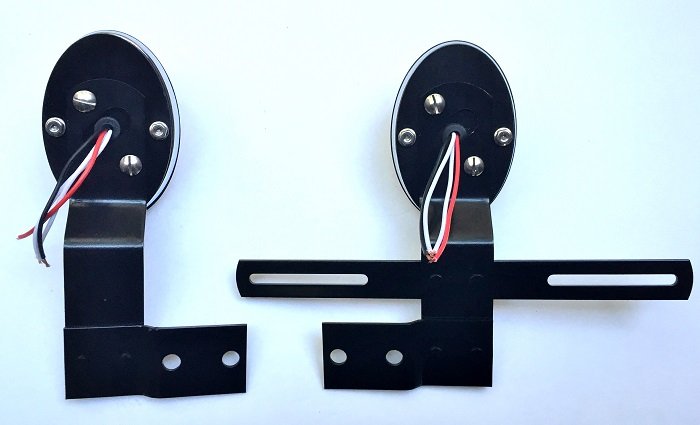

Wiring Instructions
White Wires Ground To Metal.
Black Wire For Tail Light.
Red Wire For Turn & Brake.
** SOLD Assembled As Shown in Pictures **
NOTE:
LED Lights Require Special Turn Signal Flashers To Work Properly.
If You Do not Already Have One, Flashers Are Available At Checkout.
